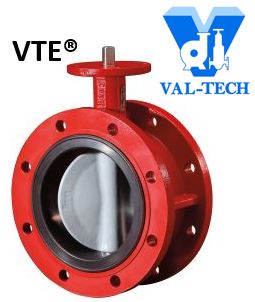

Series 3A/3AH Resilient Seated Butterfly Valve
| Specifications | |
|---|---|
| Body Style: | Double Flanged |
| Size Range: | 2″ – 20″ (50mm – 500mm) |
| Temperature Range: | -20°F to 400°F (-29°C to 204°C) |
| Pressure Ratings: | Bidirectional Bubble-tight Shutoff: to 250 psi (17.2 Bar) Body (CWP): 250 psi (17.2 Bar) |
| Body Materials: | Cast Iron, Ductile Iron, Carbon Steel |
| Disc Material: | Nylon 11 Coated Ductile Iron, Aluminum Bronze, Stainless Steel |
| Stem Materials: | Stainless Steel, Monel K500 |
| Seat Materials: | Bonded BUNA-N, Bonded EPDM, Bonded FKM* |
| Applications: | Wastewater, Seawater |
