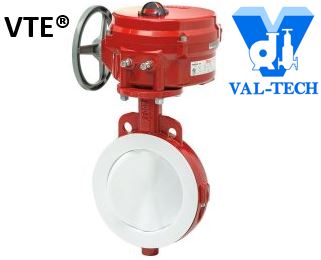

Series 22/23 Lined Butterfly Valve

Body Style: Wafer, Lug
Size Range: 2″ – 24″ (50mm – 600mm)
Temperature Range: 0°F to 392°F (-18°C to 200°C)
Pressure Ratings: Bidirectional Bubble-tight Shutoff: to 150 psi (10.3 Bar)
Body (CWP): 150 psi (10.3 Bar)
Body Materials: Ductile Iron, Carbon Steel, Stainless Steel
Disc/Stem Material: Stainless Steel, PTFE/SS, PFA/SS, UHMWPE/SS, UHMWPE/DI, Hastelloy®*, Titanium
Seat Materials: PTFE, Conductive PTFE, UHMWPE
Applications: Highly Corrosive, Toxic Media
